Pneumatic Valve Test Stand Model D38033

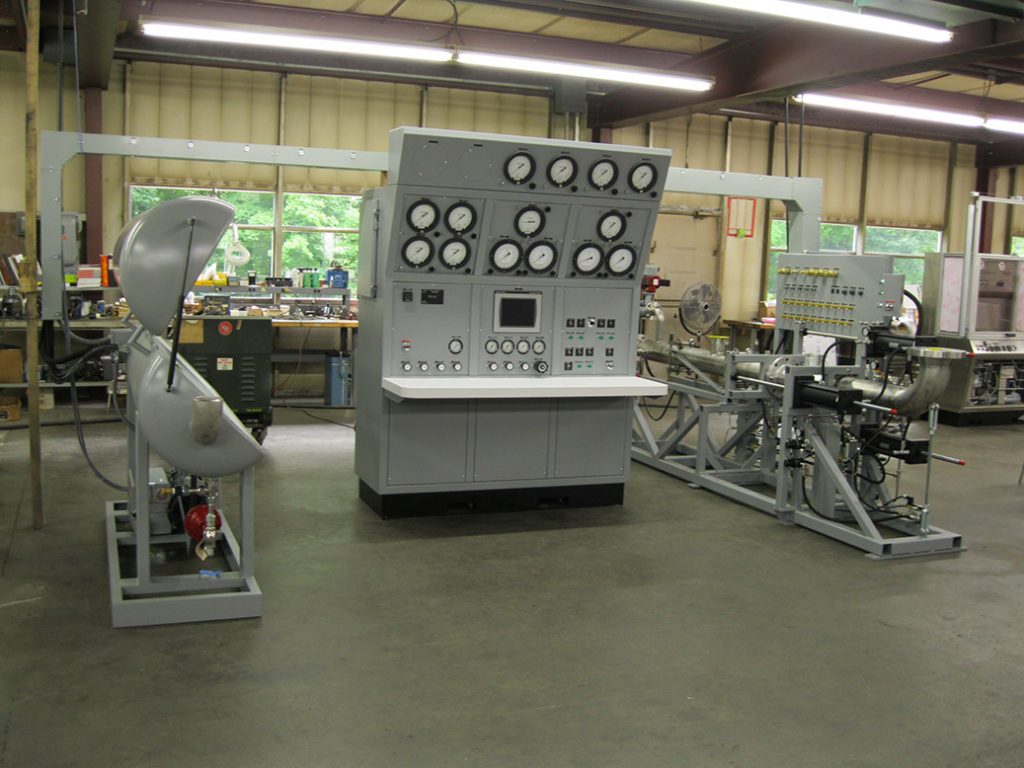

The test stand is designed for carrying out test procedures on various aircraft pneumatic valves. The stand is comprised of 3 major items:

• 1. The Test Console
  2. The Valve Fixture
  3. The Altitude Chamber

Leading Particulars:

• Air service: 6″ main flow fixture (4″ for altitude chamber)
• Control: Manual to Semi-Automated
• Instruments: Analog to Full Data Aquisition
• Power required: 460 V, 3 phase, 60 Hz
