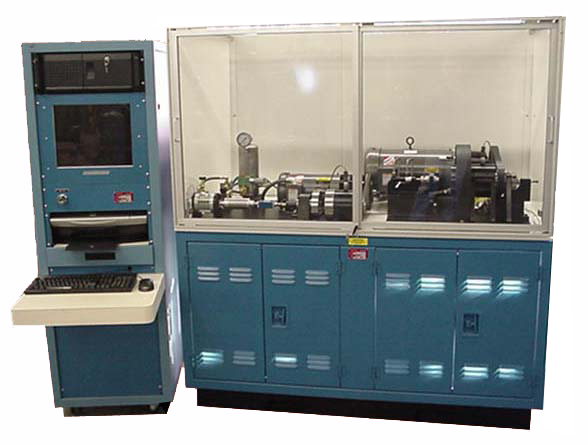

The Test Stand is designed for carrying out test procedures on F-15 Clutch and Brake units. The test stand consist of two units: the test rig and the test console. Two separate fixtures are mounted on the test rig and contains the data acquisition system that gathers and records all test parameters.
| Fuel service | Tank 15gal., max. pressure 5000 psig, max. flow 4.2 gpm |
|---|---|
| Electrical Service | 460 V, 3 phase, 60 Hz |
| Air service | 2-4 scfm, @ 80-120 psig |
| Clutch drive motor | 15 HP, 3450 rpm |
| Brake drive motor | 3 HP, 3450 rpm, max. speed 13800 rpm |
